Made in Italy
PASADENA expanded metal
| Mesh DL LWD | Thickness | Total Thickness | Dimension Hmax//LWD | Weight  | Weight  | Front Open Area | Max Open Area | Send inquiry |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [Kg/m2] | [Kg/m2] | [%] | [%] | |
| 150 | 1,50 | ~28 | 2500 | 2,90 | 8,40 | 31 | 67 | |
| 150 | 2,00 | ~28 | 2500 | 3,80 | 11,20 | 31 | 67 | |
| 150 | 3,00 | ~28 | 2500 | 5,70 | 16,70 | 31 | 67 |
Aluminium Mild Steel, Galvanized Steel; Stainless Steel
Pasadena expanded metal Technical data sheet 0,25 MB (2 pages)
Expanded metal brochure 2,8 MB (68 pages)

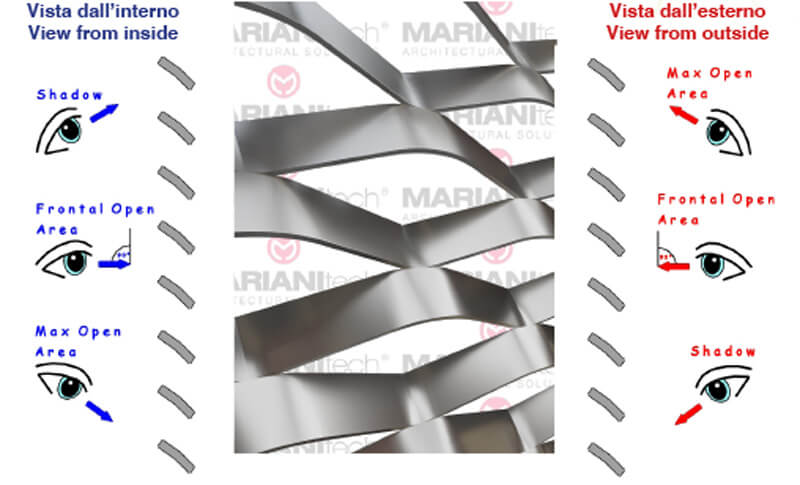

Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
Fixing & Mounting options
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Select from among the different types of understructures for the mounting of expanded metal.
