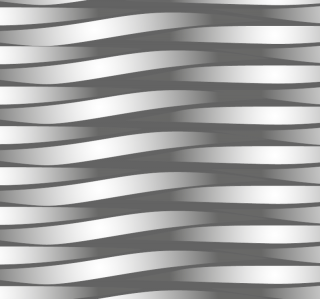

TWILL DUTCH WEAVE wire mesh

The Dutch twill weave is similar to the plain Dutch weave, except that the weave has a twill pattern and a double layer of weft threads.

There are no openings in the true sense of the word and the filtration follows a sinuous path through the depth of the wire cloth.

Woven wire cloth brochure 5,41 MB (48 pages)

NrFr	Mesh Count	Wire diameter	Approx. Weight Stainless steel	Absolute Filter	Nominal Filter	Total thickness
		[mm]	[kg/mq]	[micron]	[micron]	[mm]
560×3950	510×3600	0.025×0.015	0.28	42526	1	0.06
490×3000	450×2750	0.025×0.020	0.36	42557	1	0.07
350×2530	325×2300	0.035×0.025	0.45	42621	2	0.09
270×1500	250×1400	0.05×0.04	0.68	42715	4	0.14
220×1500	200×1400	0.07×0.04	0.75	41974	5	0.16
180×1500	165×1400	0.07×0.04	0.7	16-18	10	0.16
165×766	150×700	0.07×0.04	0.45	24-26	15	0.18
88×770	80×700	0.11×0.08	1.2	35-38	25	0.28
55×660	50×600	0.14×0.08	1.3	80-85	45	0.21
35×360	32×330	0.22×0.16	2.4	90-100	80	0.55
25×280	22×250	0.25×0.20	2.8	110-120	100	0.66
